The crossover network cable: Linking devices directly
A crossover network cable is a type of Ethernet cable used to connect two devices directly to each other without a switch or router. The crossover network cable, while less common in today’s networking landscape, remains an essential tool for specific applications.
Headline
A crossover network cable is a type of Ethernet cable used to connect two devices directly to each other without a switch or router. The crossover network cable, while less common in today’s networking landscape, remains an essential tool for specific applications.
Context
In the realm of technology, the term “crossover network cable” might sound like a piece of jargon to the uninitiated, but it is, in fact, a vital component for connecting certain types of devices. This article aims to demystify the concept of a crossover cable, explaining its purpose, how it works, and its applications in a straightforward and accessible manner. A crossover network cable is a type of Ethernet cable that is used to connect two devices directly to each other without the need for a switch or router. Traditionally, these cables are used to connect computers, printers, or other network devices in a peer-to-peer setup. The term “crossover” comes from the fact that the cable’s internal wiring is “crossed” or swapped, allowing for direct communication between devices.
Evidence
Pending intelligence enrichment.
Analysis

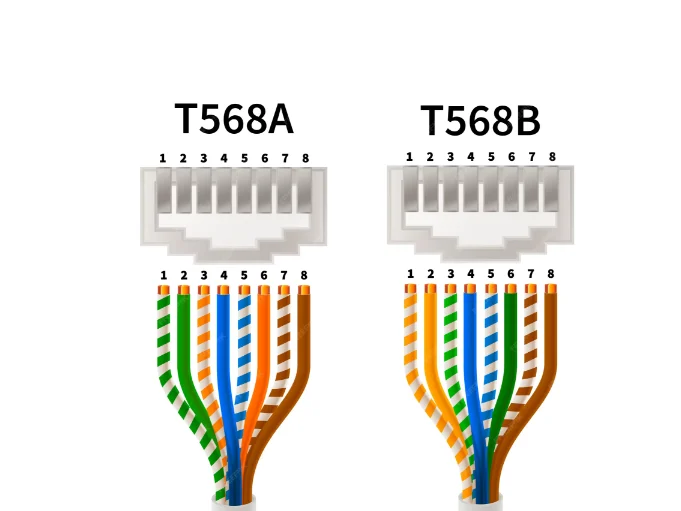

At its core, a crossover cable is designed with a specific pinout that reverses the transmit and receive signals between the two ends. This is achieved by swapping the pins that carry data from one device to the other. In a standard Ethernet cable, known as a straight-through cable, the transmit and receive pins are the same on both ends. However, in a crossover cable, the transmit pins on one end are connected to the receive pins on the other end, and vice versa. The T568A and T568B are two wiring standards used for Ethernet cables. The T568A has green-white and green wires on pins 1 and 2, and orange-white and orange on pins 3 and 6. Conversely, the T568B standard places the orange and orange-white on pins 1 and 2, and green and green-white on pins 3 and 6. While these standards are similar, the key difference lies in the order of the orange and green pairs, which can affect the functionality of certain network setups. The pinout for a crossover cable is as follows: Also read: What is a network cable?
Key Points
- A crossover network cable is a type of Ethernet cable used to connect two devices directly to each other without a switch or router.
- The crossover network cable, while less common in today’s networking landscape, remains an essential tool for specific applications.
